3590S-2-103L 3590S 10K ohm Precision Multiturn Potentiometer 10 Ring Adjustable Resistor 3590S 500 1K 2K 5K 20K 50K 100K ohm

3590S-2-103L 3590S 10K ohm Precision Multiturn Potentiometer 10 Ring Adjustable Resistor 3590S 500 1K 2K 5K 20K 50K 100K ohm

Purchase Notes


1. The two logistics of Yanwen Economic Air Mail and China Post Ordinary Small Packet Plus do not have tracking information, so there is no time limit. We recommend using China Post Registered Air Mail or AliExpress Standard Shipping.
2. We do not accept refunds for minor damage (pin bending, slight screen abrasion,etc.)during the transit of the material, without affecting normal use. If you mind,please do not buy.
3. Some products provide technical support, if you need help, please contact us, we will handle your message the first time.
4. If you have any questions about the product, please contact us before you open a dispute. We will give you the most satisfactory answer.
5. We provide each customer with good quality products, very favorable prices and the most sincere service. We hope to get your good feedback.
Wish you a pleasant shopping!

Specification:
Material: Plastic
Color: Blue
Type: Rotary Shaft
Technology: Wirewound
Turns: 10
Spinning life: 1,000,000 revolutions
Power: 2W
Resistance Tolerance: ±5%
Linearity: ±0.25%
Shaft Diameter: 6mm/0.24"
Threaded Diameter: 9mm/0.35"
Total Length: 40mm/1.6"
Load life: 1000 hours
Mechanical angle: 3600° ±10°
Operating temperature range: -55° - 125°
Size(No Include Shaft): 22x19mm/0.9"x0.7"(DxH)

1pcs 3590S Series Potentiometer

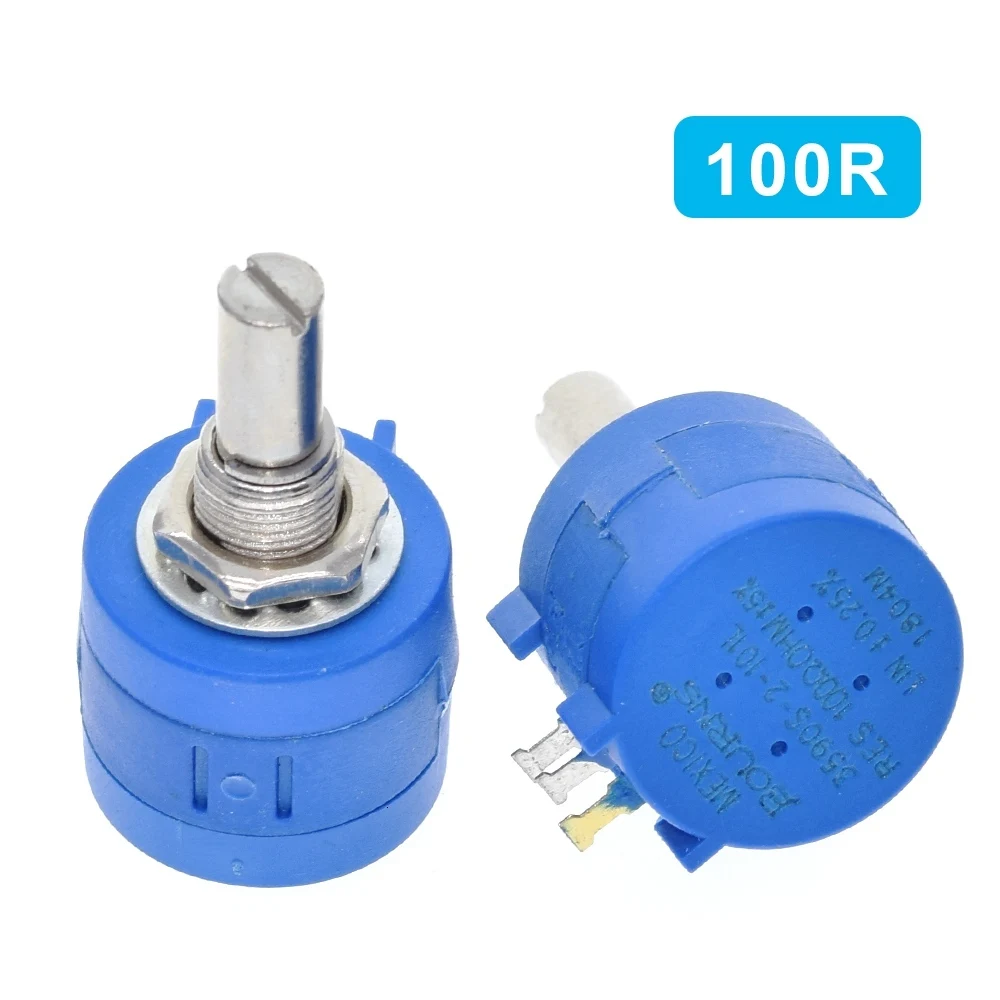

3590S-2-101L  100ohm
3590S-2-102L  1Kohm
3590S-2-103L  10Kohm
3590S-2-104L  100Kohm
3590S-2-201L  200ohm
3590S-2-202L  2Kohm
3590S-2-203L  20Kohm
3590S-2-501L  500ohm
3590S-2-502L  5Kohm
3590S-2-503L  50Kohm




If need more parts Pls click
and submit the order.If you need more quantity,Pls contact us. If you mind the price,If some parts can not find out in my store,Pls contact us,we still have many parts don't published.

We will send thelatest version of product, the upgraded function. It may has different shape or color. If you can't agree, pls don't buy.

Please don't open dispute and leave any bad feedback, if you have any question, feel free to contact us,we will give you satisfactory answer. Hope you understand us, thank you in advance.

Your satisfaction and positive feedback is very important to us. Please leave positive feedback and 5 stars if you are satisfied with our items and services.

If you have any problems with our items or services, please feel free to contact us first before you leave negative feedback. We will do our best to solve any problems and provide you with the best customer service

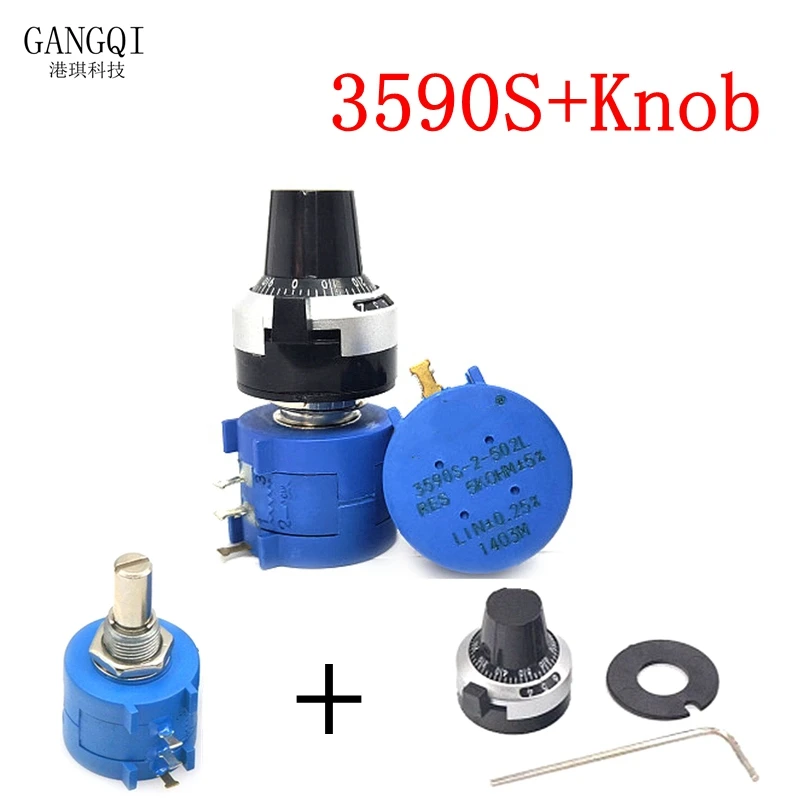

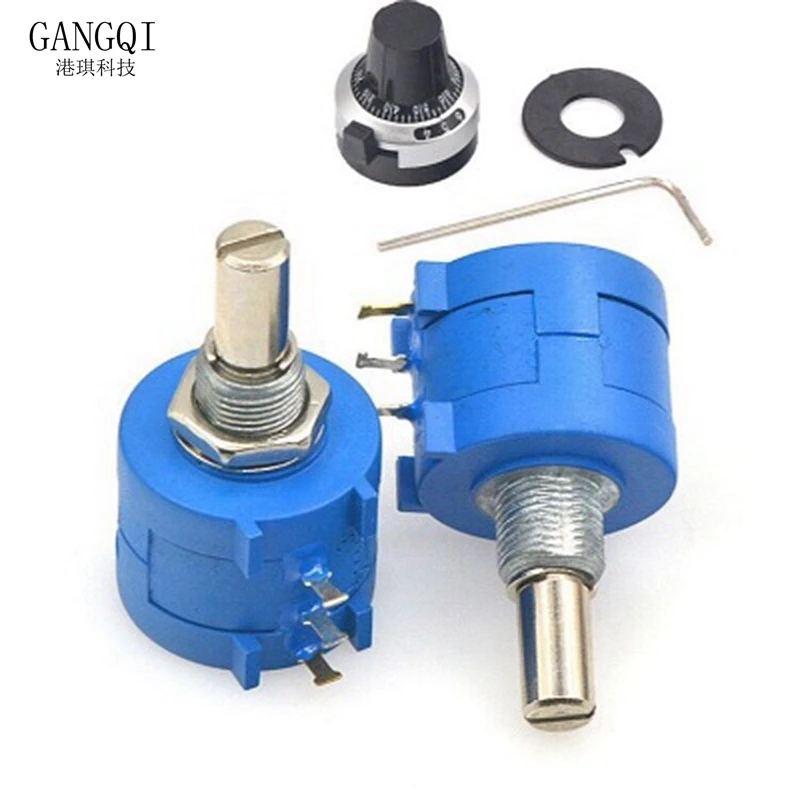

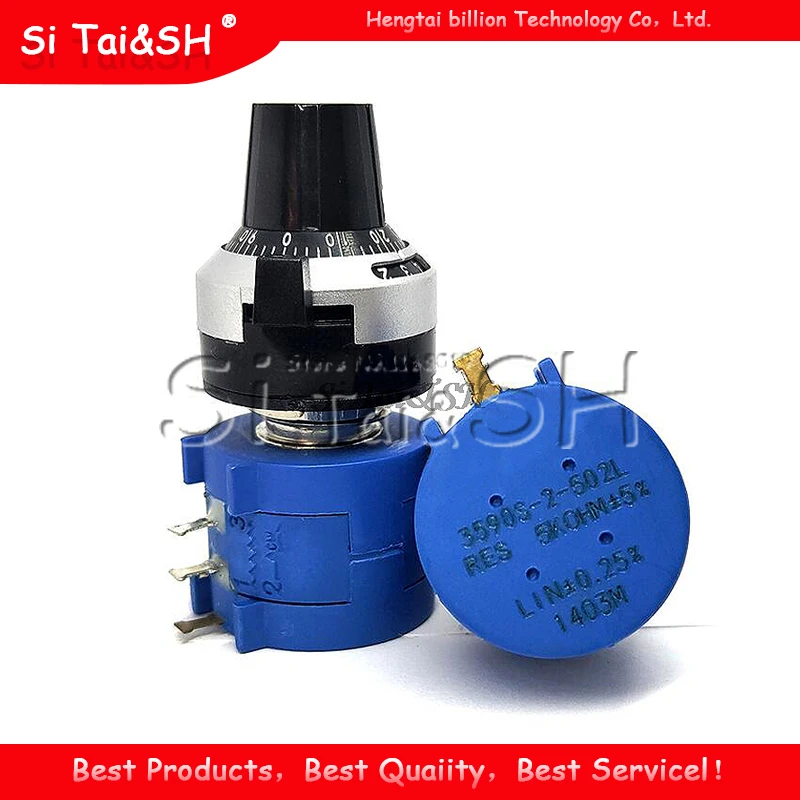

3590S-2 3590S Series Precision Multiturn Potentiometer 10 Ring Adjustable Resistor+1PCS Turns Counting Dial Rotary 6.35mm Knob

3590S-2 3590S Series  Precision Multiturn Potentiometer 10 Ring Adjustable Resistor+1PCS Turns Counting Dial Rotary 6.35mm Knob

3590S-2 3590S Series Precision Multiturn Potentiometer 10 Ring Adjustable Resistor+1PCS Turns Counting Dial Rotary 6.35mm Knob

3590S-2 3590S Series Precision Multiturn Potentiometer 10 Ring Adjustable Resistor+1PCS Turns Counting Dial Rotary 6.35mm Knob

3590S+6.35mm Scale Knob

About US

We Promise to:

* Manufacture only the best consumer goods and ensure the highest quality possible.

* Deliver goods to our customers all over the with speed and precision

Customer Service Policy

We are more than happy to answer any questions that you have, please contact with us and we will do our best to get back to you as quickly as possible.

Scope of business: auto IC, digital to analog circuit, single chip microcomputer, photoelectric coupling, storage, three-terminal voltage regulator, SCR, field effect, schottky, relays, resistors capacitors, , light tube, connectors, and other one-stop supporting services!

1. WORLDWIDE SHIPPING. (Except some countries and APO / FPO)

2. Orders processed timely after the payment verification.

3. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.

4. The images shown are not the actual item and are for your reference only.

5. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.

6. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!

7. Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.

I firmly believe

We will be your best partner

LA42DWQ-22 1K 2K 5K 10K 20K 50K 100K 200K 22mm Diameter Pots Rotary Potentiometer Converter Governor Inverter Resistance Switch

LA42DWQ-22 1K 2K 5K 10K 20K 50K 100K 200K 22mm Diameter Pots Rotary Potentiometer Converter Governor Inverter Resistance Switch

data3size1_副本124





LA42DWQ-22 1K 2K 5K 10K 20k 50k 500k 22mm Diameter Pots Rotary Potentiometer Converter Governor Inverter Resistance Switch

LA42DWQ-22 1K 2K 5K 10K  20k 50k 500k  22mm Diameter Pots Rotary Potentiometer Converter Governor Inverter Resistance Switch





WXD3-13-2W 10K 100/220/470/680 ohm WXD3-13 2W Wirewound Multi-Turn Potentiometer 1K 2.2K 4.7K 5.6K 6.8K 47K 100K rotary switch

WXD3-13-2W 10K 100/220/470/680 ohm WXD3-13 2W Wirewound Multi-Turn Potentiometer 1K 2.2K 4.7K 5.6K 6.8K 47K 100K rotary switch






Welcome to Eiechip

If you need more quantity or more products,Please contact us.



More Electronic Component,Click here ↓↓↓





 Capacitor

 Sensors

 Resistor

 Crystal

 EL Products

 LCD Display

 Integrated Circuit

 Transistor

 Diodes

 Thyristors

 Material

 Potentiometor


WXD3-13-2W 10K 100/220/470/680 ohm WXD3-13 2W Wirewound Multi-Turn Potentiometer 1K 2.2K 4.7K 5.6K 6.8K 47K 100K Potentiometer





New Arrivals
Follow the store to get fan coupons and exclusive fan discounts!
 You can click here

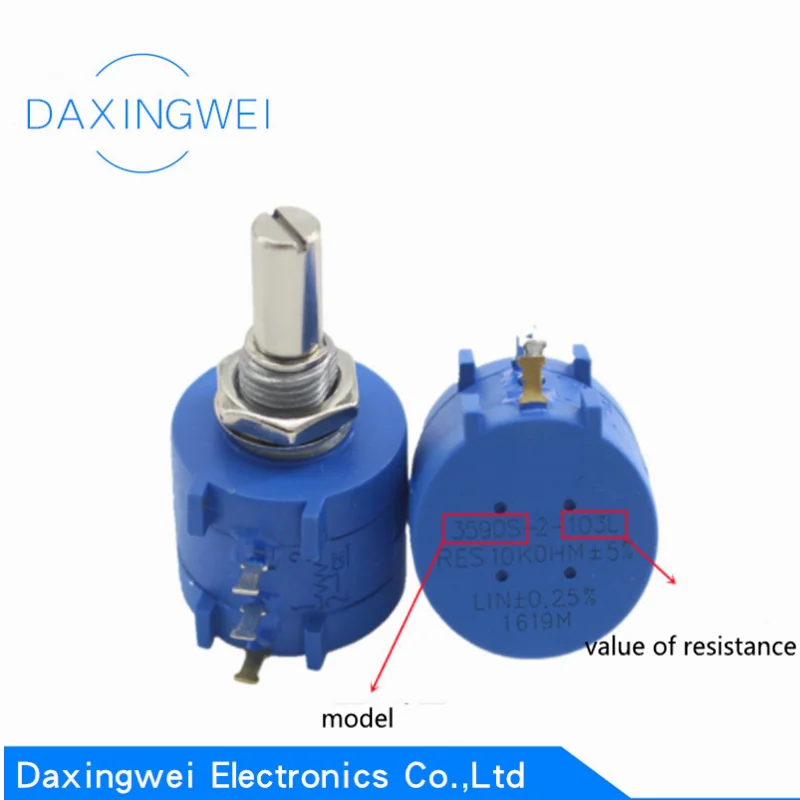

3590s Potentiometer 102L 103L 101L 201L 202L 203L 104L 100R 200R 1K 10K 2K 50K Ohm 3590s Precision Multi Turn Potentiometer

3590s Potentiometer 102L 103L 101L 201L 202L 203L 104L 100R 200R 1K 10K 2K 50K Ohm 3590s Precision Multi Turn Potentiometer


3590s potentiometer 102L 103L 101L 201L 202L 203L 104L 100R 200R 1K 10K 2K 50K Ohm 3590s precision multi turn potentiometer
★Electrical characteristics
Nominal resistance range: 100Ω-100KΩ
Allowable deviation of resistance value:±5%
Independent linearity:±0.25%
Active electrical travel:≥3600°-10°
Terminal resistance:≤0.2%Ror5Ω
Rotating noise:≤3%ROr.3Ω
Insulation resistance:R1≥1GΩ
Voltage resistance:101.3Pa 710V,8.5kPa 470V
★Environmental characteristics
Rated power(working voltage 315V):+70℃,2W
Operating temperature range: -55℃-+125℃
Resistance temperature coefficient:±100ppm/℃
Temperature variation:△R≤±2%R,△(Uab/Uac)≤±1%
Collision:390m/s2,4000Times,△R≤±1%R
Vibration:10-500HZ,0.75mmor98m/s2,6h△R≤±1%R, △(Uab/Uac)≤±2%
Climate sequence:△R≤±3%R,R1≥100MΩ
70℃Electrical durability:2W,1000h, △R≤±3%R
Mechanical durability:10000Circle, △R≤±3%R
Steady state damp heat:△R≤±3%R,R1≥100MΩ
★physical characteristics

Total mechanical stroke:3600°±10°
Starting torque:≤36mN·m
Stop torque:≥300mN·m


1. Terminal B is the middle tap of the potentiometer, and B is connected to the speed control port when wiring
2. A and C choose any one to connect to com
3. Use AB or BC terminals to adjust the speed, and the potentiometer rotates in the opposite direction. If the clockwise rotation speed increases when AB is connected, the counterclockwise rotation speed increases when the BC terminal is connected.


3590S series potentiometer 500 1K 2K 5K 10K 20K 50K 100K ohm 3590S-2-103L 3590S 101 102 103 104 201 202 203 501 502 503

3590S series potentiometer 500 1K 2K 5K 10K 20K 50K 100K ohm 3590S-2-103L 3590S 101 102 103 104 201 202 203 501 502 503





1pcs 3590S Series Potentiometer
3590S-2-101L  100ohm
3590S-2-102L  1Kohm
3590S-2-103L  10Kohm
3590S-2-104L  100Kohm
3590S-2-201L  200ohm
3590S-2-202L  2Kohm
3590S-2-203L  20Kohm
3590S-2-501L  500ohm
3590S-2-502L  5Kohm
3590S-2-503L  50Kohm



aeProduct.getSubject()





picture fourpicture onepicture threepicture twopicture-five1K2K5K10K20K50K100K100R200R500R





3296W 50 100 200 500 1K 2K 5K 10K 20K 50K 100K 200K 500K 1M ohm Multiturn Trimmer Potentiometer High Precision Variable Resistor

3296W 50 100 200 500 1K 2K 5K 10K 20K 50K 100K 200K 500K 1M ohm Multiturn Trimmer Potentiometer High Precision Variable Resistor

3296W multi-turn potentiometer, 13 commonly used resistance sample packages,

101=100Ω, 102=1K, 103=10K, 104=100K, 105=1MΩ

201=200Ω, 202=2K, 203=20K, 204=200K

501=500Ω, 502=5K, 503=50K, 504=500K

Resistance accuracy: ±10%

Terminal resistance: ≤1% or 2R

Rated voltage: 300V

Electrical travel: 30 ± 2 laps

Rated power: 0.5W (70 ° C), 0W (125 ° C)


Working temperature: -55 ° C ~ +125 ° C

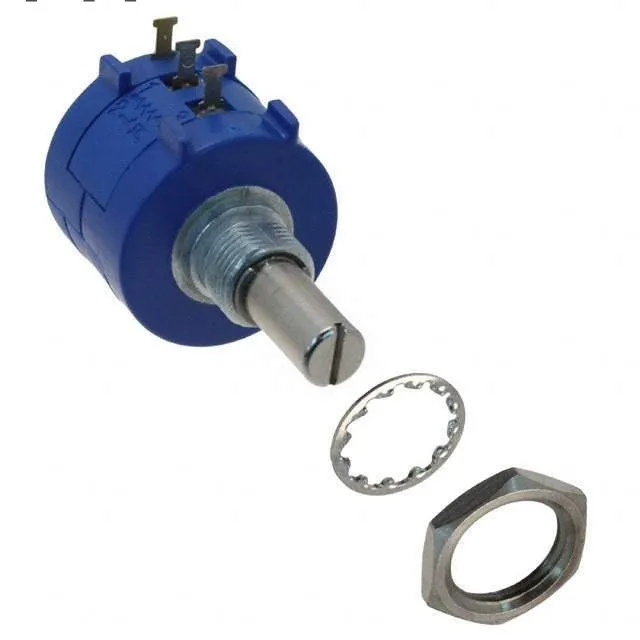

3590s-2-103 1K 2K 5K 10k 20K 50K 100K 100R 200R 500R precision multi- turn potentiometer quality adjustable resistor

3590s-2-103 1K 2K 5K 10k 20K 50K 100K 100R 200R 500R  precision multi- turn potentiometer quality adjustable resistor

3590s-2-103l 1K 2K 5K 10k 20K 50K 100K 100R 200R 500R  precision multi- turn potentiometer  quality adjustable resistor
